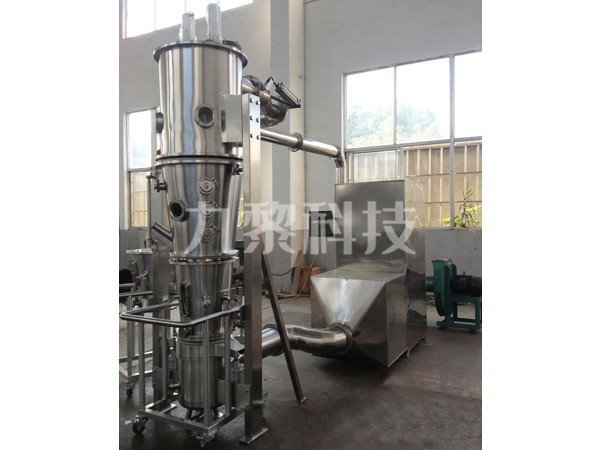

FL系列沸腾制粒干燥机

3

5

15

30

60

120

200

300

500

1000

原料容器vessel

容量volume

L

12

22

45

100

220

420

670

1000

1500

3000

直径diameter

mm

300

400

550

700

1000

1200

1400

1600

1800

2200

生产能力capability

最小min

kg

1.5

4

10

15

30

80

100

150

250

800

******max

kg

4.5

6

20

45

90

160

300

450

750

1200

风机fan

风量velocity

m³/h

1000

1200

1400

1800

3000

4500

6000

7000

8000

13670

风压pressure

mmH2O

375

375

480

480

950

950

950

950

950

1400

功率power

kw

3

4

5.5

7.5

11

18.5

30

37

45

90

蒸汽消耗量
steam consumption

kg/h

15

23

42

70

141

211

282

366

451

750

压缩空气耗量compressed air expenditure

m³/min

0.9

0.9

0.9

0.9

1.0

1.0

1.1

1.5

3.0

4.0

主机重量
weight of the main body

kg

500

700

900

1000

1100

1300

1500

1800

2500

3500

蒸汽压力
steam pressure

Mpa

0.1~0.4

温度temperature

℃

室温-120℃范围内可调节    (adjustable    at the range from room temperature to 120 °C)

作业时间
working time

min

随物料特性而定 45~90    (decided    in accordance with the properties of raw materials)

物料收得率
collect rate

%

≥99

噪声noise

dB(A)

风机与主机隔离安装,噪声≤75dB(A)    (when do installation, main machine is separated from fan.)

主机外形尺寸
size (LxWxH)

m

1.0x0.6 x2.1

1.2x0.7 x2.3

1.85x1.4 x3

2.2x1.65 x3.3

2.34x1.7 x3.8

1.25x0.9 x2.5

1.6x1.1 x2.5

2.8x2.0 x4.5

3x2.25 x5.0

4x2.8 x7.2
