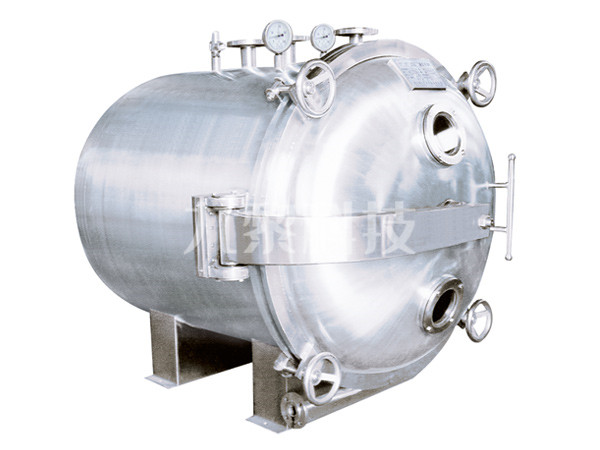

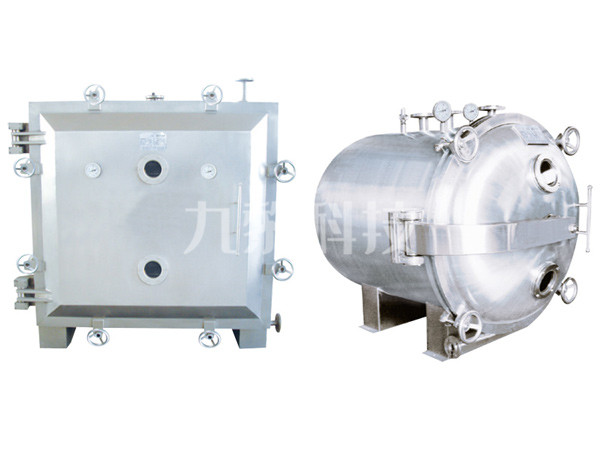

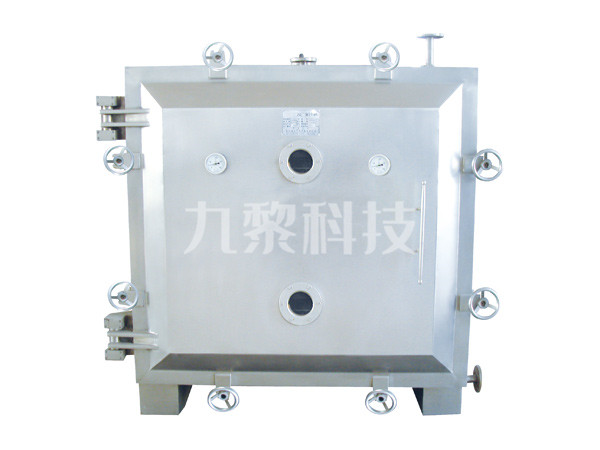

FZG/YZG系列真空干燥机

干燥内尺寸
Inner size of drying chamber    (mm)

Φ600x976

Φ1000x1530

Φ1400x2080

1140x890

x1400

1500x1200

x1400

1500x1580

x1400

3200x1220

x1400

3200x1220

x1700

干燥外尺寸
Outer size of drying chamber    (mm）

1153x810

x1020

1740x1226

x1385

2386x1657

x1800

1580x1203

x1924

2060x1513

x1924

2060x1883

x1924

3760x1515

x1924

3760x1513

x2224

烘架层数
Layers of baking support

4

6

8

8

8

8

8

12

层间距离
Interval of each layer（mm）

81

98

102

122

122

122

122

102

烘盘尺寸
Size of baking tray, mm    (WxHxL)

310x600

x45

460×640×45

烘盘数
Quantity of baking tray

4

12

32

16

32

48

64

96

烘架管内使压
Working pressure inside the    pipe of bakingsupport (MPa)

≤0.784

烘架使用温度
Operation temperatuer of    baking support(℃)

35-150

箱内空载真空度
Degree of vacuum inside the    chamber when operation in idle(MPa)

-0.1

在-0.1MPa，加热温度110℃时，水的汽化率110℃。
Under the condition of-0.1MPa    and Evaporation rate of water (kg/m2.hr)

7.2

用冷凝器时,真空泵型号、功率
When condensor is used, Model,    and power of vacuum pump (kw)

2x-15A

2x-30A

2x-70A

2X-30A

2x-70A

2x-90A

2x-90A

2x-90A

2kw

3kw

5.5kw

3kw

5.5kw

7.5kw

7.5kw

7.5kw

不用冷凝器时,真空泵型号、功率
When condensor is not used,    Model,
   and power of vacuum pump (kw)

SZ-1.5

SZ-13

SZ-6

SZ-3

SZ-6

SZ-6

SZ-12

SZ-12

3KW

5.5KW

11KW

5.5KW

11KW

11KW

18.5KW

18.5KW
